In skybow solutions built on SharePoint Framework (SPFx), you can call Microsoft Graph directly from a Client-Side Action and reuse the returned values in subsequent actions.
This guide shows how to:

Prepare a Graph Search API request against a Copilot connector (example: CSV; works for other connector types too).
Execute the call with spfxContext.msGraphClientFactory.
Capture the response and return the items list.
Add a Rich Text Control to your form, inject custom styles and a target <div>.
Create a second Execute Script action that sorts results (optional), builds a table, and renders the HTML into the Rich Text control using jQuery.

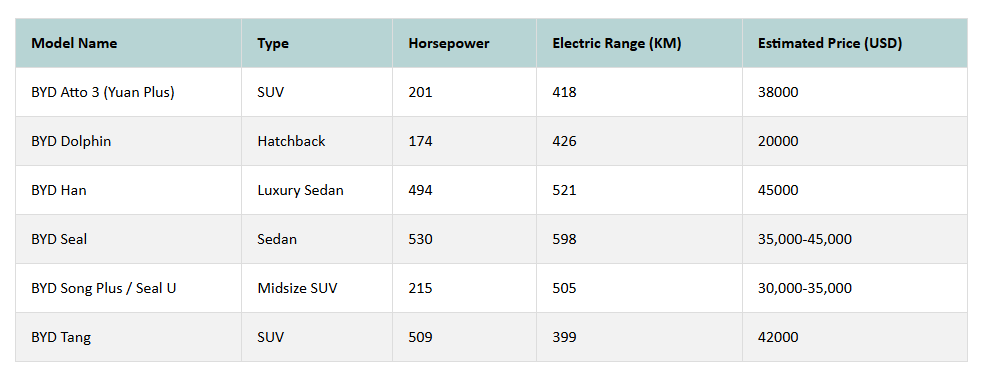

Final result will look like this:

Table of contents

Step 1 — Implement the Graph API Call in an Execute Script Action (Load Items)
Step 2 — Add a Rich Text Control and Insert Styles + Target Div
Step 3 — Create a Second Execute Script Action (Render Table)

Prerequisites

A skybow form/page with access to SPFx context (spfxContext).
Microsoft Graph permissions configured for your SPFx package (e.g., Search API).
Ensure consent has been granted by a tenant admin in the SharePoint Admin Center -> Advanced -> API Access.
A configured external connection (e.g., Copilot connector of type CSV) with its connectionId (e.g., CSV1).
jQuery available on the page (skybow Forms typically include it).

Step 1 - Implement the Graph API Call in an Execute Script Action (Load Items)

Create an Execute Script action (e.g., name it Execute_script_LoadItems) that queries your external connection via the Graph Search API and returns a list of items.

Note: The code below queries an external connection and requests fields commonly present in the CSV example. You can adapt the viewFields to match your connector’s schema.


// Parameters
var connectionId = "CSV1";
var searchText = ""; // Example: "L" to filter
var searchField = "ModelName";
var viewFields = ["Id", "ModelName", "Type", "Horsepower", "ElectricRangeKM", "EstimatedPriceUSD"];

// Build dynamic search query
var searchQuery = {
    queryString: "*",
    queryTemplate: `${searchField}: *`
};

if (searchText) {
    searchQuery = {
        queryString: searchText,
        queryTemplate: `${searchField}: * AND ${searchField}:{searchTerms}*`
    };
}

// Execute Graph Search API via msGraphClientFactory and return items
return new Promise((resolve, reject) => {
    spfxContext.msGraphClientFactory.getClient().then((client) => {
        var body = {
            requests: [
                {
                    entityTypes: ["externalItem"],
                    contentSources: [`/external/connections/${connectionId}`],
                    query: searchQuery,
                    from: 0,
                    size: 100,
                    fields: viewFields
                }
            ]
        };

        client.api('/search/query').post(body).then(response => {
            var items = [];
            var hits = response?.value?.[0]?.hitsContainers?.[0]?.hits;
            if (hits) {
                // Extract the properties from the external items
                items = hits.map(hit => hit.resource.properties);
            }
            resolve(items); // Return to be consumed by subsequent actions
        }).catch((ex) => {
            reject(ex);
        });
    });
});

This action returns an array of objects (items) that will be referenced by the second action.

Step 2 - Add a Rich Text Control and Insert Styles + Target Div

Open your skybow Form Designer.
Drag a Rich Text Control onto your form where the table should appear.
Click the Edit Source button in the control’s command bar.
Paste the HTML/CSS snippet below:

<div>
    <style>
        #externalDataTable table {
            width: 60%;
            border-collapse: collapse;
            margin: 20px 0;
            font-size: 16px;
            text-align: left;
        }

        #externalDataTable th,
        #externalDataTable td {
            padding: 12px 15px;
            border: 1px solid #ddd;
        }

        #externalDataTable th {
            background-color: #b7d4d4;
            color: black;
        }

        #externalDataTable tr:nth-child(even) {
            background-color: #f2f2f2;
        }

        #externalDataTable tr:hover {
            background-color: #ddd;
        }
    </style>
</div>

<div id="externalDataTable"></div>

This adds a target container with the ID externalDataTable and table styles that will apply to the HTML generated in the next step.

Step 3 - Create a Second Execute Script Action (Render Table)

Create another Execute Script action (e.g., name it Execute_script_RenderTable) that reads the output from the first action, optionally sorts the results, then builds and injects the table HTML into #externalDataTable using jQuery.

In skybow, you can reference the return value from the previous action using:
[[@Actions.<ActionName>.ReturnValue]]


// Read items from the first Execute Script action
const items = [[@Actions.Execute_script_LoadItems.ReturnValue]];

// (Optional) Sort by Model Name; case-insensitive and null-safe
items.sort((a, b) => {
    const am = (a.modelName || a.ModelName || '').toString().toLowerCase();
    const bm = (b.modelName || b.ModelName || '').toString().toLowerCase();
    return am.localeCompare(bm, undefined, { sensitivity: 'base' });
});

// Build table HTML
const tableHTML = `
    <table>
        <thead>
            <tr>
                <th>Model Name</th>
                <th>Type</th>
                <th>Horsepower</th>
                <th>Electric Range (KM)</th>
                <th>Estimated Price (USD)</th>
            </tr>
        </thead>
        <tbody>
            ${
                items.map(item => {
                    // Support both camelCase and PascalCase
                    const modelName = item.modelName ?? item.ModelName ?? '';
                    const type = item.type ?? item.Type ?? '';
                    const horsepower = item.horsepower ?? item.Horsepower ?? '';
                    const electricRangeKM = item.electricRangeKM ?? item.ElectricRangeKM ?? '';
                    const estimatedPriceUSD = item.estimatedPriceUSD ?? item.EstimatedPriceUSD ?? '';

                    // Basic escape function
                    const esc = s => String(s)
                        .replace(/&/g, '&amp;')
                        .replace(/</g, '&lt;')
                        .replace(/>/g, '&gt;')
                        .replace(/"/g, '&quot;')
                        .replace(/'/g, '&#39;');

                    return `
                        <tr>
                            <td>${esc(modelName)}</td>
                            <td>${esc(type)}</td>
                            <td>${esc(horsepower)}</td>
                            <td>${esc(electricRangeKM)}</td>
                            <td>${esc(estimatedPriceUSD)}</td>
                        </tr>
                    `;
                }).join('')
            }
        </tbody>
    </table>
`;

// Inject into the Rich Text control target div
jQuery('#externalDataTable').empty().append(tableHTML);

// Optional return for logging/diagnostics
return 'Table rendered';

Tips & Troubleshooting

Connector Schema / Field Names
External connectors may return properties in PascalCase (ModelName) or camelCase (modelName). The robust script handles both; adjust if your schema differs.
jQuery Availability
If $ is not defined, use jQuery(...). Ensure the form loads jQuery (skybow Forms typically do).
Error Handling
Add try/catch around sorting and rendering if your data may contain unexpected values. Consider logging the length of items or capturing empty results.
Performance
For large datasets, consider limiting size in the request, adding server-side query filters, or implementing client-side pagination.
Security
Use basic HTML escaping when rendering user-supplied text to avoid injecting unsafe markup.

What You Get

A reusable pattern to call Graph from skybow client-side actions.
A styled, dynamic table inside a Rich Text control.
A setup that works for CSV and other connector types, as well as other Graph endpoints beyond /search/query.
